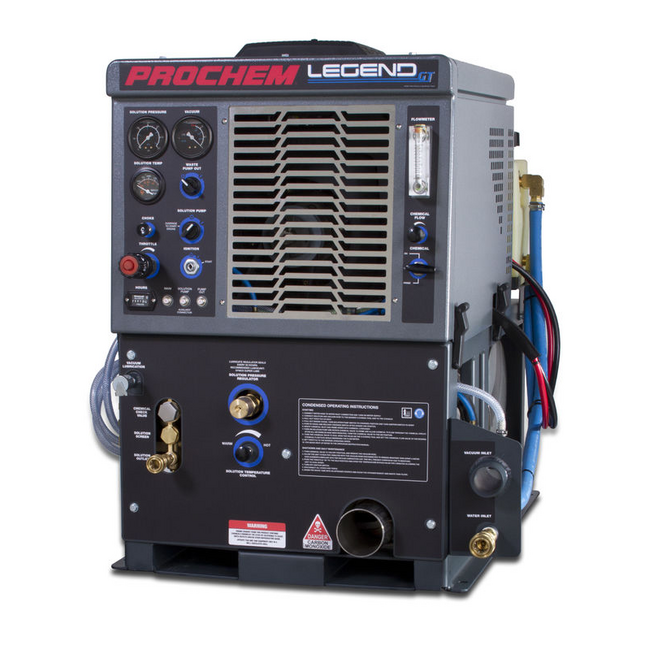

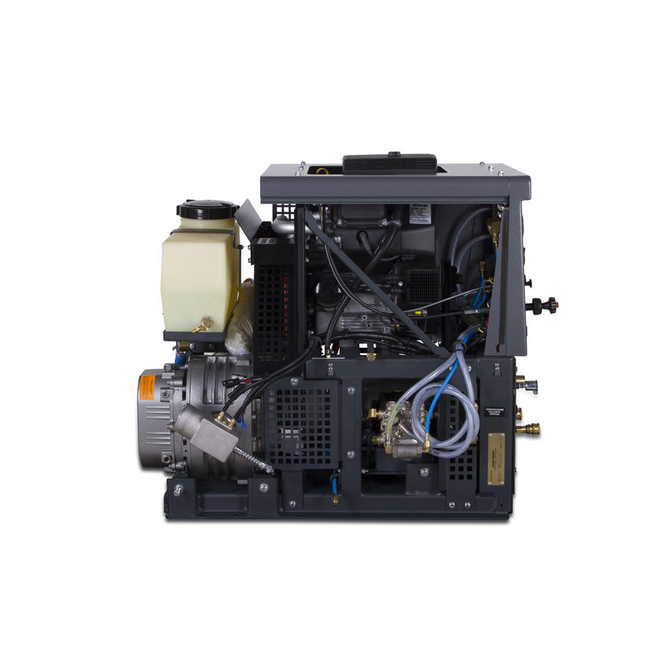

Legend GT W/120gl Waste Tank

Product description

Legend GT - Kawasaki 23 HP V-Twin air-cooled engine

PRODUCT DESCRIPTION:

Building on the Legend’s proven track record, this unit delivers even better performance and longer life with single-stage finned tube exhaust heat exchange, a corrosion-resistant aluminum frame, and an engine oil cooler. All exhaust components are treated with Cerakote ceramic coating to reduce truckmount operating temps.

SIZES ▪ OPTIONS

117579 (72-LGT): Legend GT with 90 gal. / 341 L waste tank

108091 (72-LGTHC): Legend GT with 120 gal. / 454 L waste tank

101049 (68-416): 60 gal. / 227L water belly tank (sold separately)

SPECIFICATIONS:

ENGINE: Kohler Command 0.67 L gasoline engine with oil cooler.

DISPLACEMENT BLOWER: Gardner Denver 4MVL positive displacement blower.

SOLUTION PUMP: General water pump producing up to 1200 PSI and 3.5 GPM.

DIMENSIONS: Console (W × H × D): 32 × 33 × 39.5 in. | 81 × 83.8 × 100 cm

LEGEND REWARDS:

10,000 points

Features

Front panel waste pumpout switch. Convenient - operate optional waste pumpout from front of machine.
Simplified control panel. Easy to operate. Front lower panel can be removed quickly for maintenance.
Stainless steel chemical pump. Durable chemical pump resists corrosion to provide long service life.
Pulse isolating hose reduces vibration caused by piston water pump.
Last step chemical injection. Cleaning chemicals are added just as the water leaves the machine, helping to protect the water pump.

Includes

Console with removable shrouds
Waste tank with automatic shut-off
100 ft. - 2" vacuum hose with connectors
50 ft. - water supply hose w/ quick connect
12” Low Profile 4-jet titanium wand (67-082) and Glide (67-085)
5 gallon chemical jug and holder
Group 24 battery box (battery not included)
Vehicle-specific fuel installation kits sold separately
All units include Legend Reward points. End customer must establish a rewards account and register their machine for warranty online to receive points.

Specs

Engine: Kohler Command 0.67 L gasoline engine with oil cooler

Displacement Blower: Gardner Denver 4MVL positive displacement blower

Solution pump: General water pump producing up to 1200 PSI and 3.5 GPM

Dimensions: Console (W × H × D): 32 × 33 × 39.5 in. | 81 × 83.8 × 100 cm
